Ever Power Industrial Solutions — United Kingdom

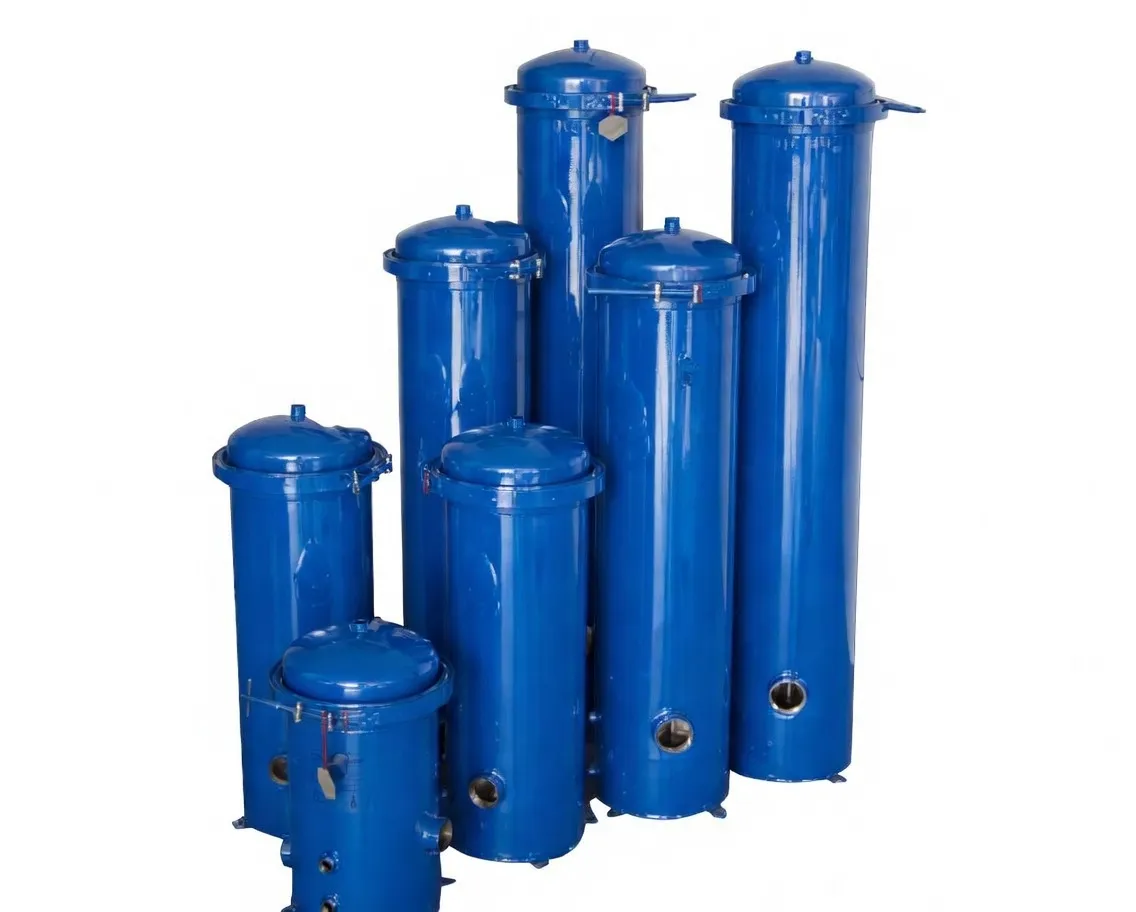

Stainless Steel Precision Filters for Air Compressor After-Treatment Systems
316-grade stainless filtration engineered for UK pharmaceutical, food processing, automotive and chemical manufacturing sectors — ISO 8573-1 compliant, down to 0.01 µm.
Compressed air is the invisible backbone of modern British industry — from precision engineering workshops in the West Midlands to sterile pharmaceutical clean rooms in Cambridgeshire and large-scale food processing facilities across Yorkshire. Yet untreated compressed air carries a damaging mixture of moisture, oil aerosols, and sub-micron particulate contamination that silently corrodes sensitive downstream equipment, undermines product integrity, and in regulated industries triggers compliance failures that can halt operations entirely. The consequence is not merely mechanical — it strikes at product quality, regulatory standing, and commercial reputation.
Ever Power’s stainless steel precision filters for air compressor after-treatment systems resolve this challenge at the source. Manufactured from AISI 316-grade stainless steel and designed to ISO 8573-1 international standards, these filters deliver filtration accuracy down to 0.01 microns, stripping compressed air of virtually every trace of contamination before it reaches your production line. Whether you operate a high-volume automotive facility in Birmingham, a sterile pharmaceutical plant in Oxford, or a specialist food production unit in Edinburgh, the performance and hygiene credentials of a stainless steel precision filter are not a luxury — they are an operational necessity that directly protects your bottom line and regulatory compliance position.
Three Filtration Grades — Precision Where It Matters
The stainless steel precision filter range is structured around three graduated performance tiers, each calibrated to a specific contamination removal requirement and designed to work in concert as a multi-stage after-treatment train. Rather than applying a one-size-fits-all approach, these configurations allow UK plant engineers to specify exactly the right filtration level for each stage of the compressed air system — minimising unnecessary pressure drop while guaranteeing targeted air purity outcomes aligned with application-specific regulatory requirements.
🔵 FC GradePrimary Dust Filter | 3 µm Captures coarse particulates at the first stage of the after-treatment chain. Extends the operating life of downstream FA and FT elements significantly, reducing total filter maintenance costs. | 🟢 FT GradeDust Filter | 1 µm Mid-chain filtration removing fine aerosols and sub-micron dust. Ideal for general-purpose industrial pneumatic systems, automotive tooling, and mid-grade process air applications. | 🟠 FA GradeHigh-Precision Filter | 0.01 µm Ultra-fine stainless steel precision filtration for pharmaceutical GMP environments, food direct-contact air, semiconductor clean rooms, and any application demanding Class 1 ISO 8573-1 air quality. |
Model Range & Technical Specifications
Matching the right model to your compressor’s output capacity is critical for maintaining system pressure efficiency and maximising filter element life. The table below covers the complete stainless steel precision filter model range from 3.8 m³/min through to 43 m³/min, allowing UK procurement teams and plant engineers to make precise equipment decisions. All ratings are based on standard conditions of 20 °C inlet temperature and 7 bar working pressure. Connection flanges conform to standard DN pipe sizing for straightforward integration into existing compressed air ring mains and distribution systems commonly found across UK industrial sites.
* All models rated to 10 bar working pressure. Shell material: AISI 316 stainless steel with high-precision internal and external mechanical polishing.
Core Performance Parameters
Why UK Engineers Specify Ever Power Stainless Steel Precision Filters
Across industries, the decision to invest in a stainless steel precision filter is ultimately about protecting production continuity and product integrity simultaneously. Ever Power’s product range delivers on five dimensions that directly address the operational priorities of British manufacturing businesses — from reducing unplanned stoppages to satisfying Food Standards Agency hygiene requirements and MHRA pharmaceutical GMP obligations. Each design decision, from shell material selection through to surface finish specification, has a deliberate impact on real-world performance across UK factory floor conditions.
✅ 316 Stainless Steel — Engineered for LongevityThe outer casing is formed from AISI 316 stainless steel — the same alloy specification trusted in offshore oil infrastructure and hospital-grade surgical equipment. Both internal and external surfaces are mechanically polished to a smooth, low-roughness finish, significantly reducing bacteria adhesion sites and supporting rapid clean-down between production runs. This material selection delivers a substantially extended service interval compared to carbon steel or aluminium-bodied alternatives, reducing the total cost of filter ownership across a 5–10 year horizon for UK industrial operations running high-duty-cycle compressed air systems. |
⚡ Sub-Micron Filtration Precision at 0.01 µmThe FA-grade filter element achieves a filtration threshold of 0.01 microns — a level that intercepts not only visible dust and scale but also sub-micron oil aerosols and biologically significant particulates. In a pharmaceutical manufacturing context, this directly supports GMP compliance and reduces the risk of batch rejection. In food processing environments, it eliminates cross-contamination risk from airborne oils, preventing off-flavour incidents and spoilage events that carry serious commercial consequences for UK food brands operating within BRC and BRCGS-certified production frameworks. |

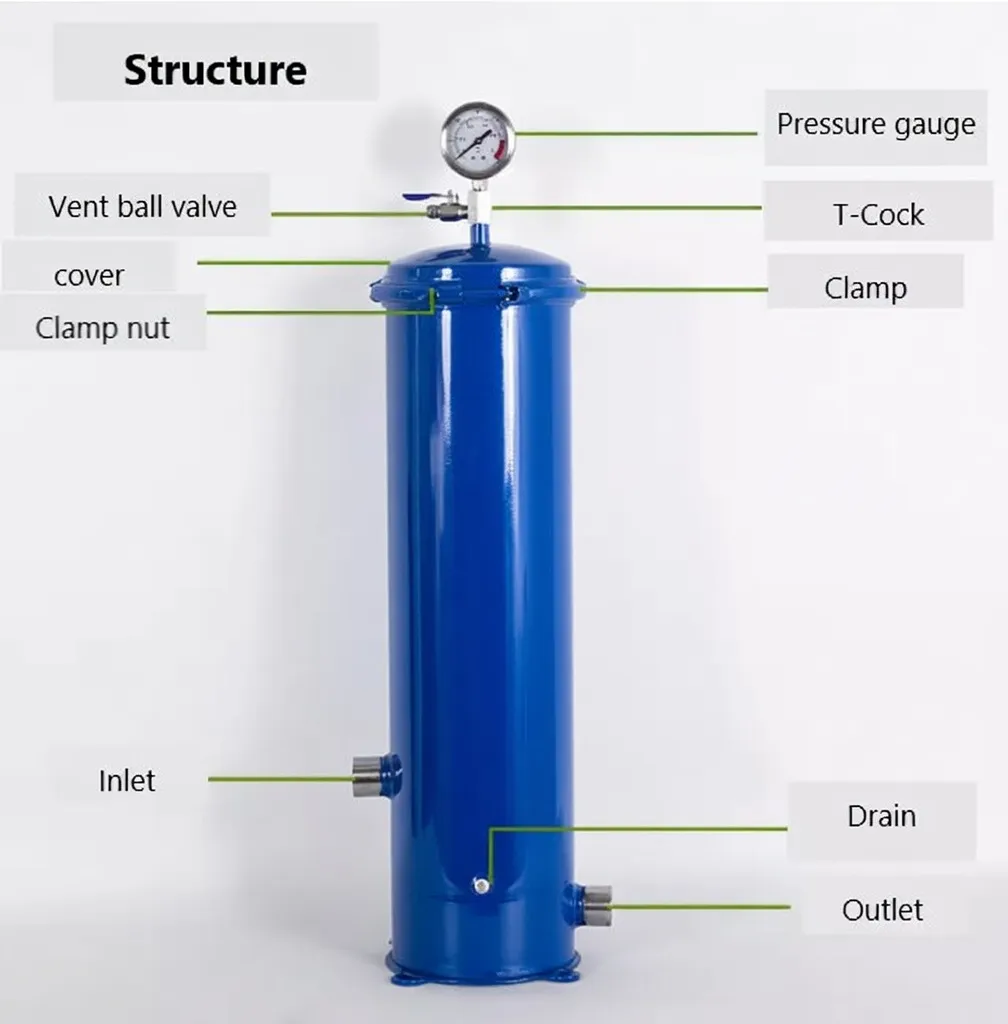

🔨 Low Maintenance — Designed Around Real Downtime ConstraintsThe structural design of the stainless steel precision filter prioritises ease of maintenance without compromising sealing integrity. Filter element replacement is engineered to be straightforward — reducing the technical skill barrier and cutting planned maintenance downtime. The locking collar and optional flange connection options make integration into both new-build and existing compressed air pipework simple, which is particularly valued by UK plant maintenance teams working within tight planned shutdown windows on continuous-process manufacturing sites where every hour of downtime carries measurable cost. |
🍀 Hygienic Design for MHRA and BRCGS Regulated Environments316 stainless steel does not corrode, does not leach harmful compounds, and maintains structural integrity across a wide operating temperature range — making these stainless steel precision filters inherently suited to pharmaceutical GMP environments and BRC-accredited food factories. The polished internal surfaces prevent micro-pitting where contaminants could accumulate, and the hermetically sealed filtration path eliminates the risk of post-filtration re-contamination — a documented failure mode in lower-grade polymer or aluminium filter housing materials operating in humid UK production environments. |
🌎 Broad Environmental Adaptability Across UK Industry SectorsFrom chemical processing environments with aggressive solvent vapours along Teesside to high-humidity coastal manufacturing sites in Scotland, the stainless steel precision filter performs consistently where lesser materials corrode and fail prematurely. The 10 bar working pressure rating ensures full compatibility with the vast majority of UK industrial compressed air systems, and the corrosion-resistant shell maintains dimensional stability in environments where thermal cycling — from morning cold starts to full operating temperature — is a daily operational reality rather than an exceptional condition. |
Where Stainless Steel Precision Filters Deliver the Greatest Impact
The value of a stainless steel precision filter in a compressed air after-treatment system is not uniform across sectors — it scales dramatically with the purity demands of the end application. Understanding where these filters create the highest operational impact helps UK procurement managers and technical directors allocate capital investment strategically and build a robust, auditable air quality assurance programme.
💊 Pharmaceutical & Healthcare — MHRA GMPBreathable air, sterile product contact, and capsule filling lines demand oil-free compressed air at Class 1 or Class 2 ISO 8573-1 purity. FA-grade stainless steel precision filters are the standard specification across UK MHRA-regulated facilities. | 🍞 Food & Beverage — BRC / BRCGS CertifiedDirect and indirect product contact air in bakeries, bottling lines, and dairy processing must meet BRCGS standards. Stainless steel precision filters eliminate oil mist contamination with no risk of metallic taint from the filter housing itself. | |
🔧 Automotive & Precision EngineeringPaint spraying, pneumatic tooling, and CNC machining suffer quality failures when compressed air carries particulate or oil aerosol. FC and FT grade filters deliver cost-effective protection for high-throughput production sites in the Midlands and North West. | 🔬 Electronics & SemiconductorPCB assembly, component cleaning, and wave soldering require particle-free air. A single contaminated air pulse can destroy an entire production batch. FA-grade stainless steel precision filters protect cleanroom integrity at facilities across Scotland’s Silicon Glen and Cambridge’s tech cluster. |
The Compressed Air After-Treatment System — Where Precision Filters Fit
A stainless steel precision filter performs as part of a coordinated after-treatment chain that progressively conditions raw compressor output into point-of-use quality air. Understanding this system context is critical for specifying the right filtration grade at each stage and for calculating the overall pressure drop budget across the full post-processing assembly.
💧 Stage 1: Drying UnitRefrigeration or adsorption dryers reduce moisture content, creating the dry baseline that maximises filter element service life and prevents downstream condensation corrosion. | 📈 Stage 2: Filter Train (FC → FT → FA)Multi-stage stainless steel precision filtration removes particles progressively from 3 µm down to 0.01 µm. Each filter stage removes what the previous stage could not, protecting downstream equipment and processes. | 🗑 Stage 3: Receiver TankA stainless steel receiver allows final moisture precipitation and pressure stabilisation before filtered air enters the distribution network, further reducing condensate carryover risk at peak demand periods. |
Customer Success: 74% Reduction in Contamination Events — Nottingham Pharmaceutical Facility, UK
A mid-sized pharmaceutical contract manufacturer based in Nottingham was experiencing recurring batch failures attributable to sub-micron oil aerosol contamination in their compressed air supply. The facility operates three rotary screw compressors feeding a central ring main serving seven cleanroom suites, with production running across two shifts. Independent compressed air quality audits consistently flagged oil contamination levels exceeding ISO 8573-1 Class 1 thresholds despite existing single-stage polypropylene filter housings being maintained to schedule.
Their maintenance engineering team specified Ever Power’s FA-grade stainless steel precision filters across all three compressor outlets in a multi-stage configuration. The retrofit was completed during a planned 48-hour shutdown and required no pipework modifications beyond standard flange adapter plates. Installation documentation, including material certification to EN 10204 3.1 and pressure test certificates, was supplied as part of the commissioning package — satisfying the facility’s GMP documentation requirements without additional third-party testing.
Within 90 days, oil contamination events recorded in their compressed air quality logs dropped from an average of 3.2 events per month to zero. Batch rejection rates attributable to air quality fell by 74% over the following six months. The engineering director estimated the annual operational saving — accounting for rejected batches, regulatory notifications, and maintenance labour — at over £180,000. The filter system has operated without a housing failure or element integrity event for 22 consecutive months at the time of writing.
“The performance difference was noticeable within the first month of operation. Compressed air quality logs have remained clean since installation, and the filter element replacement schedule fits perfectly within our existing planned maintenance downtime windows.”
— Head of Engineering, Pharmaceutical Contract Manufacturer, Nottingham, United Kingdom
Verified Customer Reviews — UK Operators
★★★★★ “We specified FA-grade stainless steel precision filters for our new dairy processing line in Leeds and the results have been excellent. Post-installation air quality testing passed first time with oil concentration below detectable limits. Installation was completed cleanly with no pipework modifications required, and the technical support team answered every question our site engineers raised before and during commissioning. We’ve recommended the product to two sister sites already.” James T. — Engineering Manager, Dairy Processing Group, Leeds, UK |
★★★★★ “We operate a high-volume automotive components plant near Coventry and had persistent oil contamination affecting our spray coating quality lines for over a year. After fitting FT-grade stainless steel precision filters on the compressor outlets, the problem disappeared completely. Reject rates on coated components dropped by a measurable margin in the first quarter, and we’ve recorded zero filter-related quality incidents in the 14 months since commissioning. Return on investment was clear within five months.” Sarah M. — Production Director, Automotive Components Manufacturer, Coventry, UK |
★★★★★ “As a specialty chemicals facility on Teesside, our operating environment is corrosive enough to destroy standard filter housings within 18 months. Ever Power’s 316 stainless steel precision filters have now run for over two years with no corrosion, no housing failures, and no contamination events of any kind. The pricing was competitive against European alternatives and the lead time to our UK facility was shorter than any other supplier we approached. We’ve standardised on this product range across all three of our UK sites.” David R. — Maintenance Manager, Specialty Chemicals Plant, Teesside, UK |
Bespoke Manufacturing & Customisation for UK Industrial Projects
Ever Power’s production facility operates with advanced CNC machining centres, precision TIG welding infrastructure, and dedicated quality control processes that extend well beyond standard catalogue products. For UK clients with non-standard compressed air system configurations — including unusual pipe diameters, non-standard pressure ratings beyond 10 bar, extreme temperature operating ranges, or specialist hygiene certification requirements — our engineering team designs and manufactures bespoke stainless steel precision filter solutions to exact client specification with full supporting documentation.
Customisation options include alternative shell lengths and diameters to match specific installation constraints, non-standard flange patterns for legacy pipework systems, electropolishing for ultra-high hygiene pharmaceutical applications, custom filter element media grades and end-cap configurations, and branded product labelling for OEM supply chain partners. We work directly with UK engineering distributors, systems integrators, and end-user plant teams — providing full technical documentation, material certification to EN 10204 3.1, and hydraulic pressure test certificates as standard on every custom order. No engineering brief is too complex for our applications team to evaluate, and we are accustomed to working to tight project timelines for UK capital investment programmes.
Standard catalogue models are typically available for UK delivery within 10–15 working days. Custom-engineered stainless steel precision filter assemblies are generally available within 4–6 weeks from confirmed technical specification. There is no minimum order quantity on standard sizes, making Ever Power a practical supplier choice for UK maintenance teams requiring single-unit replacement parts as well as large-scale new installation projects.
अक्सर पूछे जाने वाले प्रश्नों
Ready to Upgrade Your Compressed Air Purity?
Speak with our application engineers about the right stainless steel precision filter configuration for your UK facility — whether you need a standard catalogue model or a fully bespoke engineered solution.
